Sonic Drilling Explained: Technology, Benefits, And Industry Use Cases

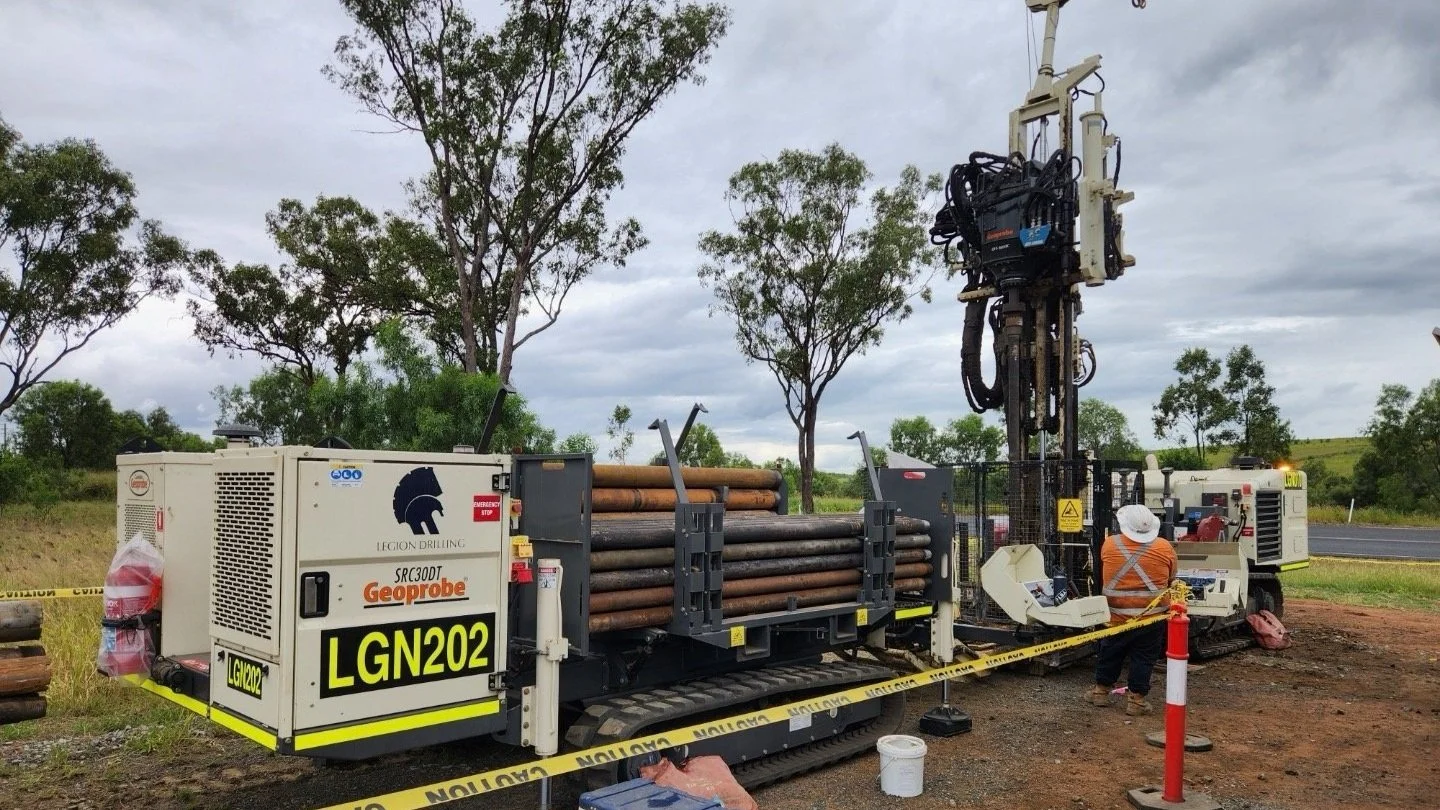

Legion Drilling Geoprobe Sonic 8150 Rig and Automatic Rod loader provides industry leading safety to the mining and construction industry in Australia.
Sonic Drilling Explained: Technology, Benefits, And Industry Use Cases
Sonic drilling has emerged as one of the most sought-after methods in the field of environmental, geotechnical, and resource investigations in Australia, particularly for challenging ground conditions. But what makes thistechnology stand out, and why are professionals across mining, environmental, and construction sectors increasingly opting for sonic rigs over traditional methods? In this post, we’ll explore how sonic drilling works, itssignificant benefits and applications, as well as scenarios where alternative drilling might be preferable. Drawing on the expertise and capabilities of Legion Drilling, this guide provides clarity for project managers,consultants, and site owners seeking robust, efficient, and environmentally sensitive drilling solutions.
How Sonic Drilling Works
Sonic drilling uses high-frequency, resonant vibrations applied to a core barrel, casing, and drill bit. This oscillatory movement reduces friction between the drill string and the surrounding geology, allowing for rapidadvancement and efficient core recovery through even the most stubborn materials. What sets sonic apart is the combination of vibration with gentle rotational motion. The system vibrates at frequencies between 50 and150 Hz, which is precisely targeted to the soil type, enabling penetration through dense clays, gravel, boulders, landfill debris, and tailings with minimal disturbance.
A sonic drilling rig transmits this energy from a powerful oscillator to the drilling rod, causing the bit to fluidise or displace soil particles rather than simply grind through them. As a result, the technique minimises mixing orcompression of the sampled material, preserving stratification and making it ideal for both environmental and geotechnical investigations. Legion Drilling’s fleet of modern sonic rigs incorporates high-frequency oscillators,engineered to deliver consistent and controlled energy output tailored to each site condition.
Advantages of Sonic Drilling
The major advantage of sonic drilling is its ability to recover an exceptionally high-quality core, often approaching 100% recovery, even in highly unconsolidated or variable ground. For clients, this means you can trust thedata from each run, whether conducting geotechnical analysis, environmental characterisation, or mineral assays.
Beyond superior recovery, the method offers further advantages:
Minimal Disturbance: Sonic vibration fluidises the material directly ahead of the bit, reducing lateral movement and core disturbance. This preserves true stratigraphy, essential for contamination delineation orengineering design.
Reduced Waste Generation: Compared to rotary or auger drilling, sonic systems can reduce drill spoils and waste by up to 80%. This minimises environmental impact and lowers disposal costs.
Higher Productivity: Sonic rigs can advance meters per hour faster than comparable methods, especially in layered, saturated, or cobble-laden soils.
Versatility: Sonic drilling is effective for soil, landfill debris, tailings, overburden, and weathered rock. It enables installation of monitoring wells, inclinometers, and remediation systems within a single borehole.
Safety and Clean Operation: Lower vibration transmission and reduced noise levels contribute to safer worksites and less disruption in sensitive or urban areas.
For specialists conducting landfill investigations or mine tailings sampling, the ability to achieve undisturbed core recovery through “difficult” materials without introducing drilling fluids or compounding cross-contamination is invaluable. Legion Drilling’s approach further enhances these benefits by deploying above-ground mud systems and strict quality assurance, aligning with high safety and environmental standards.
Typical Applications of Sonic Drilling
Sonic drilling is particularly suited to projects demanding high quality, uncontaminated samples across a range of complex site conditions. For example:
Landfill and Waste Site Investigation: Sonic rigs provide reliable recovery through compacted waste, geomembranes, buried debris, and fill layers. This supports environmental risk assessments and landfill capdesign.
Mine Tailings and Spoil Sampling: The method allows rapid profiling through unconsolidated mine waste, tailings dams, and slurry deposits, supporting both safety inspections and resource evaluation.
Geotechnical and Environmental Investigations: High integrity core samples underpin reliable soil classification, contamination delineation, and foundation risk assessments, especially when combined withother in-situ testing such as cone penetration test.
Well Installation: After drilling, sonic rigs can quickly install monitoring wells, inclinometers, or remediation systems in a single mobilisation, reducing project timelines.
Depth Capability and Technical Considerations
One frequently asked question concerns how deep a sonic drilling rig can go. Sonic drilling routinely achieves depths of 60 to 100 metres in typical soil and unconsolidated rock. However, the practical drilling limit can varydepending on formation hardness, borehole stability, and core diameter. Legion Drilling’s advanced rigs are designed for flexibility, offering both shallow and deeper investigation capability, with tailored equipment selectionfor each project's specific requirements.
Are There Any Disadvantages?
While sonic drilling brings significant advantages, it is important to recognise scenarios where other drilling methodologies might be preferred:
Hard Rock Penetration: Sonic performance decreases markedly in competent, hard rock (e.g., granite, basalt) where rotary diamond or rotary percussive techniques are more efficient.
Higher Cost per Metre: The advanced technology and operator skill required may mean higher initial rates compared to conventional auger drilling. For simple, shallow soil jobs, more basic methods such as augerdrilling may be cost-effective.
Equipment Weight and Access: Sonic rigs are substantial in size and weight. Limited access sites or areas with sensitive surface infrastructure may require adaptation or pre-drilling using smaller rigs.
Learning Curve: On sites unaccustomed to the method, additional planning may be needed to optimise rig setup and sample handling.
Legion Drilling consults with clients in the early project stages to ensure the optimal solution, integrating sonic technology when it delivers the clearest benefit and recommending alternate approaches where morepractical.
Legion Drilling’s Approach to Sonic Technology
Legion Drilling has established itself as a leading sonic drilling company in Australia. By investing in the latest high-frequency sonic rigs with hands free rod loaders and cultivating experienced teams, the company ensures you receive unmatched core recovery and site efficiency. Whether you require detailed geotechnical drilling for infrastructure design or robust sampling from landfill and mine environments, Legion Drilling offers proven solutions backed bystrong environmental and safety credentials.
Sonic drilling is transformative for site characterisation and resource evaluation, particularly in complex subsurface conditions that hinder traditional methods. With the ability to deliver nearly undisturbed, continuous corerecovery, reduce drilling waste, and complete projects efficiently, it supports informed decision-making across environmental, geotechnical, and mining sectors. While not the first choice for hard rock or extremely shallowsurface work, its advantages for landfill, tailings, and mixed-material projects are compelling. If you are considering drilling for your next project, engaging an expert drilling contractor with advanced sonic rig capability mayprovide the clarity and sample quality you need for outstanding project outcomes.
